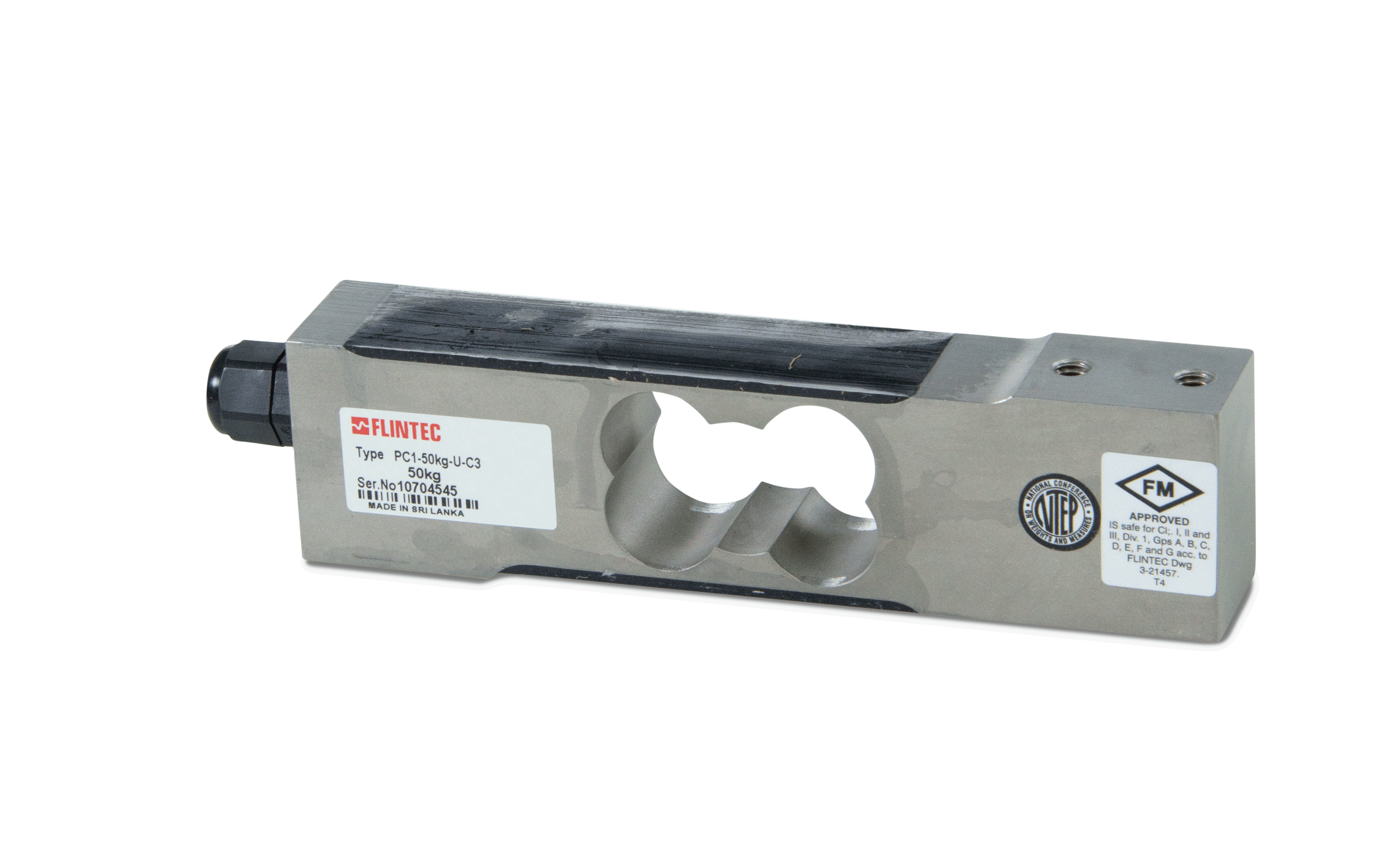

Flintec PC1 Single-Point Load Cell
Load Cells
Flintec PC1 Single-Point Load Cell
Compact, high-precision single-point load cell designed for low-capacity retail, laboratory, and light industrial bench scales. Offers exceptional sensitivity, fast settling time, and reliable repeatability.
Flintec PC1 Single-Point Load Cell is listed in ICTCO Egypt's Load Cells portfolio for quote-based B2B supply, selection support, installation and after-sales service.
Key Features
- Engineered for low capacities from 7.5 kg to 200 kg
- High-accuracy OIML C3 and NTEP approved performance
- High-grade alloy construction with moisture-resistant protection
- Moment-insensitive platform design up to 350 x 350 mm
- Fast settling time for high-throughput counting and packaging
- Overload stop capability protecting against accidental drops
SPECS
specs
TypePrecision Single-Point Load Cell
Capacity Range7.5 kg to 200 kg
Max Platform SizeUp to 350 x 350 mm
ProtectionIP65 / IP67
Safe Overload150% rated capacity
Cable4-wire shielded cable, 3 m
Applications
use cases
- Retail price-computing and counter scales
- Small bench counting scales in stockrooms
- Medical scales and portion control equipment
- Postal scales and light assembly line stations
