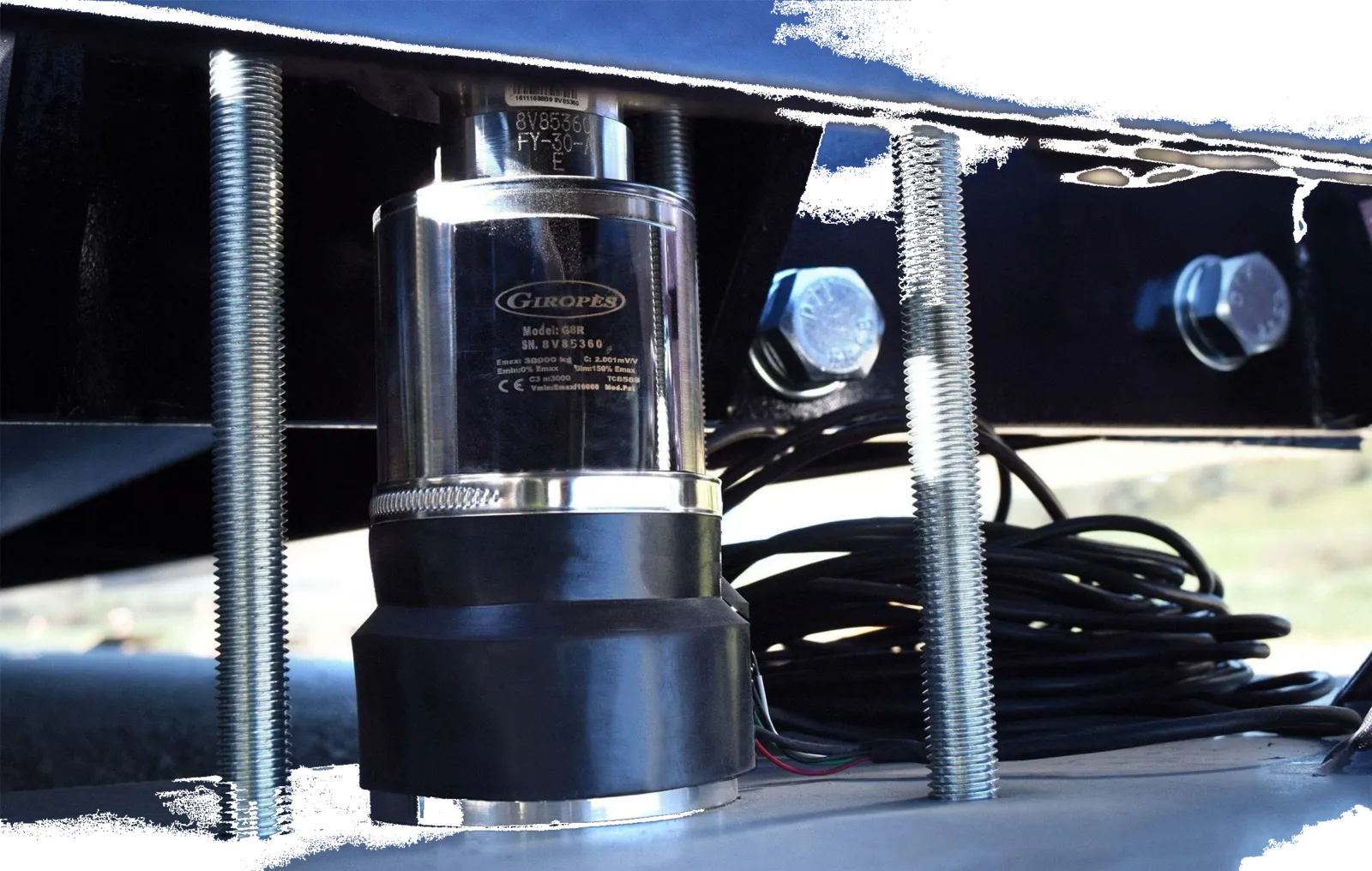

Giropes G8R Compression Load Cell
Load Cells
Giropes G8R Compression Load Cell
Self-centering rocker-column compression load cell designed for heavy vehicle weighbridges. Constructed from stainless steel with hermetic laser welding and built-in rotation prevention for reliable long-term accuracy.
Giropes G8R Compression Load Cell is listed in ICTCO Egypt's Load Cells portfolio for quote-based B2B supply, selection support, installation and after-sales service.
Key Features
- Self-centering rocker column compensating for platform expansion and deflection
- Stainless steel construction with laser-welded hermetic sealing rated IP68/IP69K
- Integrated mechanical anti-rotation pin preventing cable twist damage
- OIML R60 approved up to C3 and C4 accuracy classes
- High nominal capacities from 20 to 50 Tons per cell
- Comprehensive surge protection shielding against electrical transients
SPECS
specs
TypeSelf-Centering Rocker Column Load Cell
Capacity Range20, 30, 40, and 50 Tons
MaterialStainless Steel
ProtectionHermetic Laser Welded IP68 / IP69K
AccuracyOIML R60 Class C3 / C4
Safe Overload150% of nominal capacity
Applications
use cases
- Truck scales and vehicle weighbridges under severe transport traffic
- Axle weighing platforms and railway weighbridges
- Heavy industrial silos, hoppers, and storage tanks
- Ports, logistics terminals, and bulk distribution depots
